About This

• Please Note: This unit will only pass Dolby Digital/DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio. This unit is not compatible with Apple TV 3rd Generation (Model: A2843) and certain Comcast Xfinity boxes, and not compatible with HDMI 1.2 sources or monitors made before 2005.

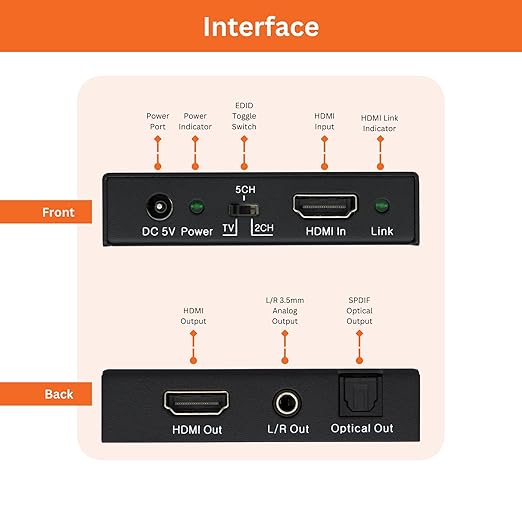

• 𝐀𝐔𝐃𝐈𝐎 𝐄𝐗𝐓𝐑𝐀𝐂𝐓𝐈𝐎𝐍 - Extract the digital HDMI audio signal from the HDMI input and convert it to 2 channel analog stereo output or multi-channel Audio (SPDIF) output. **NOTE: This unit will only pass Dolby Digital/DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio. This unit is not compatible with Apple TV 3rd Generation (Model: A2843) and certain Comcast Xfinity boxes
• 𝟒𝐊 𝐔𝐥𝐭𝐫𝐚 𝐇𝐃 𝐰𝐢𝐭𝐡 𝐇𝐃𝐌𝐈 𝟐.𝟎 | 𝟏𝟎𝟖𝟎𝐏 𝟏𝟒𝟒𝐇𝐳 | 𝟏𝟎𝟖𝟎𝐏 ?𝟐𝟎𝐇𝐳 - Supports the highest video resolution to 1080P@144Hz, 1080P@120Hz, 4K 50/60HZ (YUV444). Supports HDMI 2.0b (18Gbps) HDCP 2.2 and DVI compliant; Supports HDR10(We suggest using HDMI 2.0 certified cable to get HDR10 compatibility)

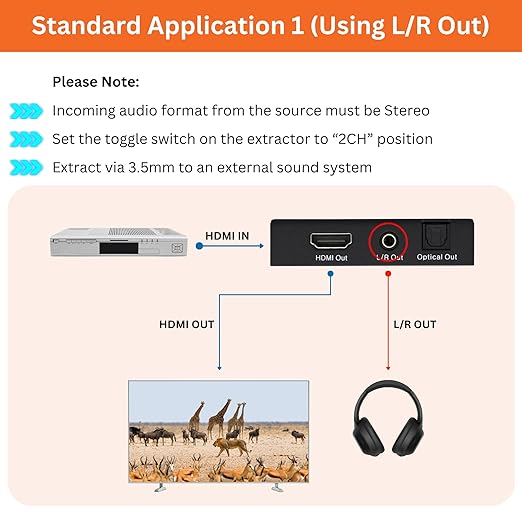

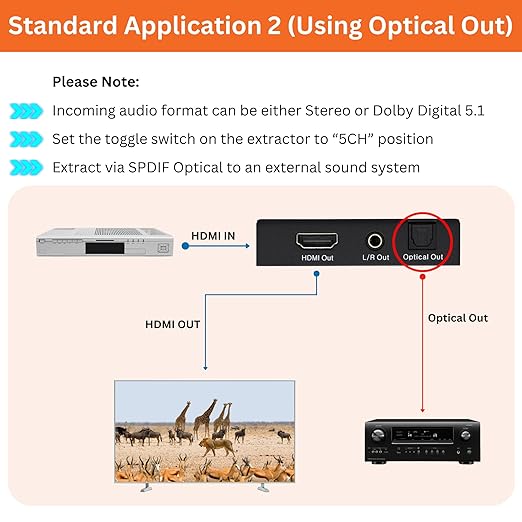

• 𝐀𝐔𝐃𝐈𝐎 𝐄𝐃𝐈𝐃 𝐒𝐄𝐓𝐓𝐈𝐍𝐆𝐒 - 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output, Supports uncompressed audio such as LPCM. Supports DTS Digital / Dolby Digital pass through (Our device does not decode the digital audio, you will still need an end display that is compatible with those formats) ; DOES NOT SUPPORT ARC FUNCTION.
• 𝐀𝐃𝐕𝐀𝐍𝐂𝐄𝐃 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 - Supports HDMI HIGH Bit Rate(HBR) audio pass through; Audio sample rates up to 192kHZ;10 Bit HDR pass through.; Supports CEC bypass

Overview

• Brand : J-Tech Digital
• Maximum Supply Voltage : 5 Volts (DC)
• Minimum Supply Voltage : 5 Volts (DC)
• Number of Pins : 24
• Interface Type : Component, HDMI
