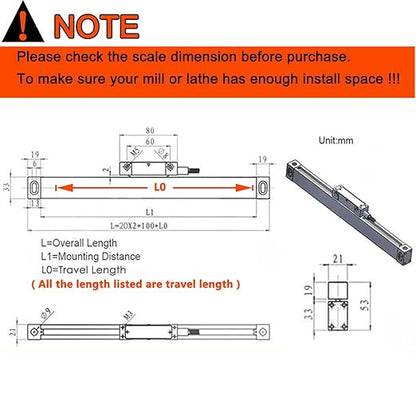

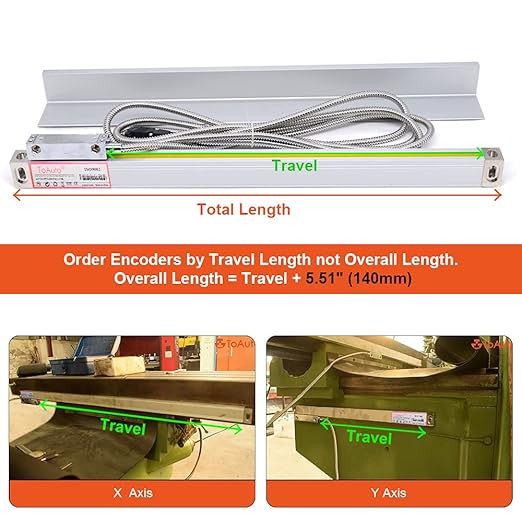

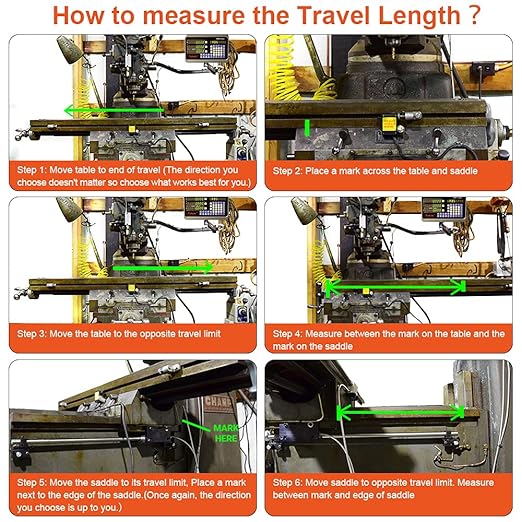

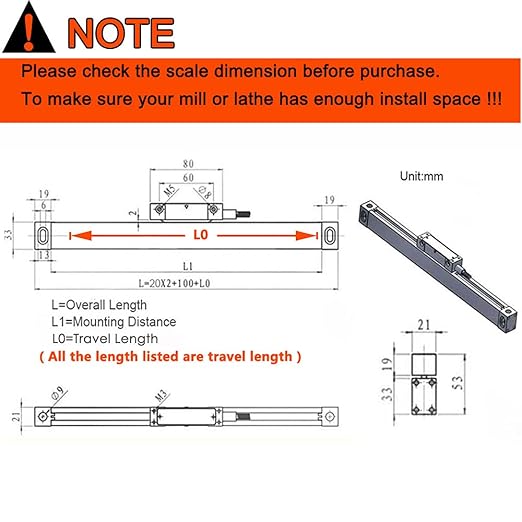

【TRAVEL LENGTH】The optical linear scale travel length : 900mm (36") . Total length=travel length+140mm(5.5”) . Travel length ONLY comes in 50mm increment ( 50/100/150....1000MM) . Note : You will only receive 1pc 900mm Linear Scale when you select this option.
【HIGH PERFORMANCE】Measurement accuracy of the linear sensor can be accurate to 5 micron(0.005mm / 0.0002") to reduce working errors.

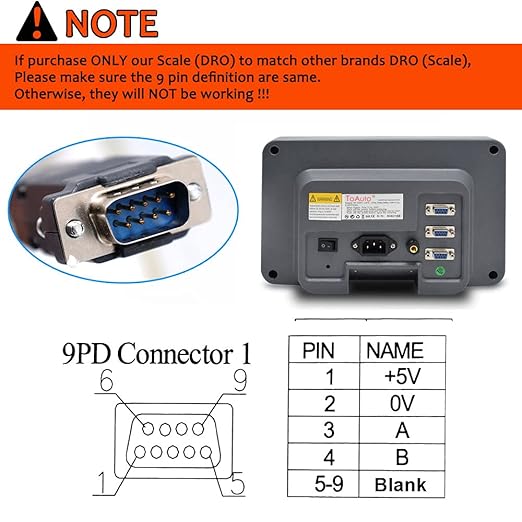

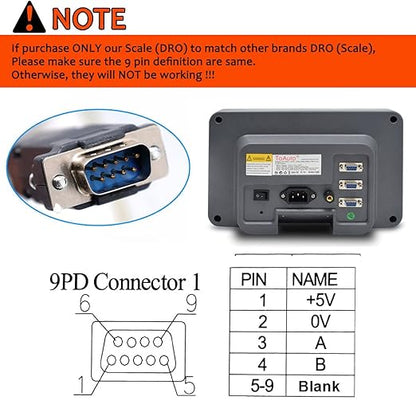

【INTERFACE&SIGNAL CABLE】TTL Square wave input signal through DB9 (RS232) interface with 9pins, default 3meter signal cable applies multilayer shielded wire steel and metal shell protection. If you need longer cable ,please let me know.

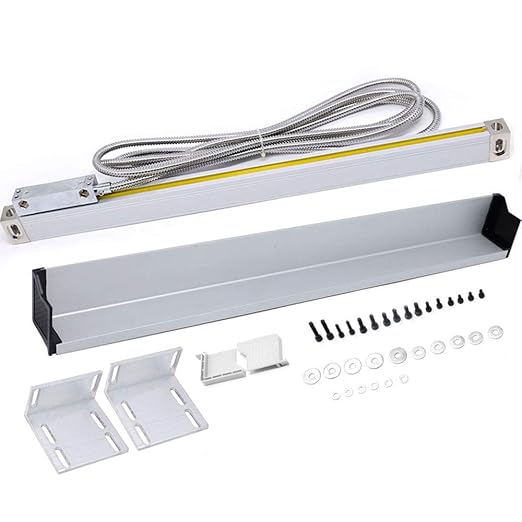

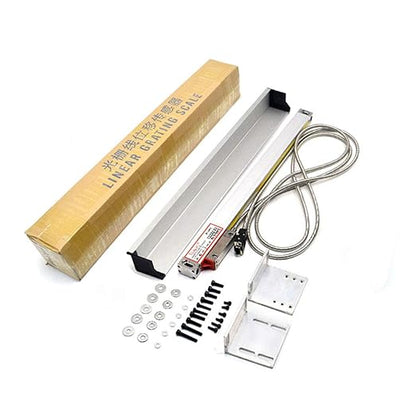

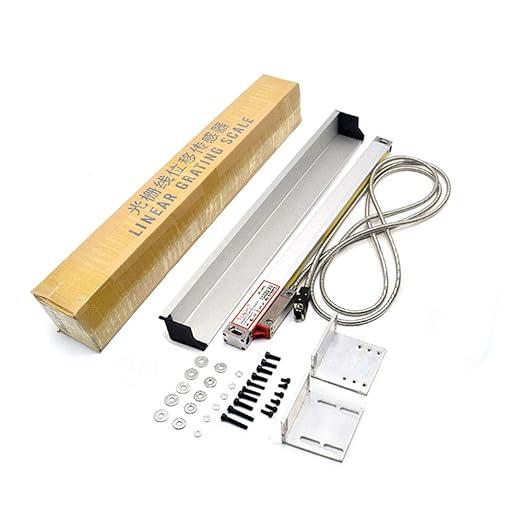

【FULL MOUNTING KIT】The package include 1pc 900mm linear scale , 1pc L type mounting plate, 1pc scale cover and some screws, easy installation.
All Products will be provided for 2 year warranty after sales and lifetime technical support,and 30-day return.
