DIYmalls 2.4" inch TFT LCD Display Module ILI - 9341 Resistive Touchscreen 5V/3.3V 8-bit Parallel Interface w/SD Card Slot for Arduino Mega-2560

DIYmalls 2.4" inch TFT LCD Display Module ILI - 9341 Resistive Touchscreen 5V/3.3V 8-bit Parallel Interface w/SD Card Slot for Arduino Mega-2560

$19.17 USD
$19.17 USD
Sale Sold out
Shipping calculated at checkout.

About This

  • This 2.4 inch tft lcd shield is resistive touch, not capacitive touch.

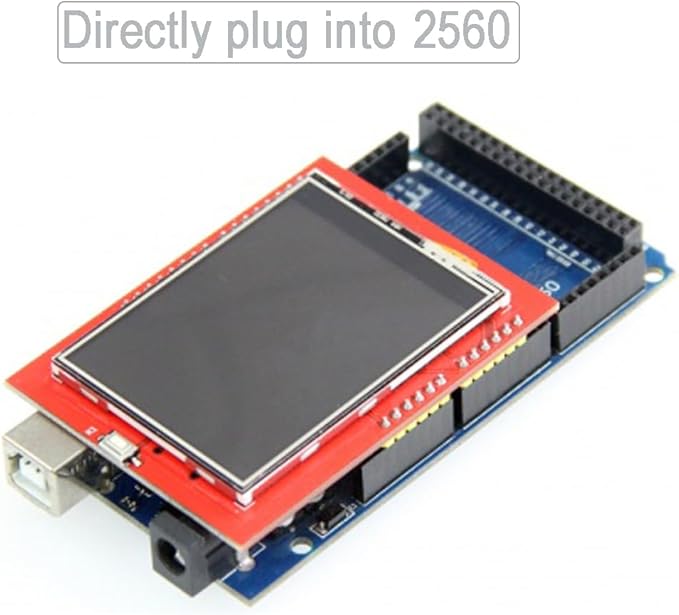

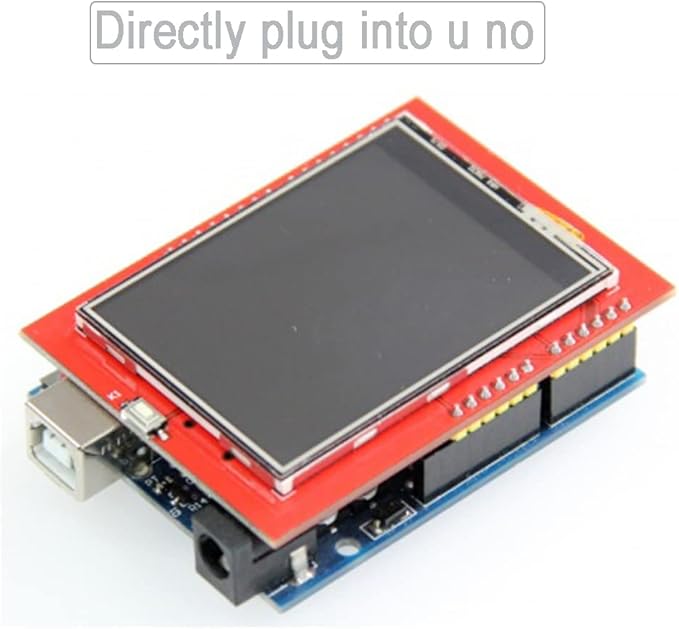

  • The 2.4 inch display can be directly plug into u no and 2560.

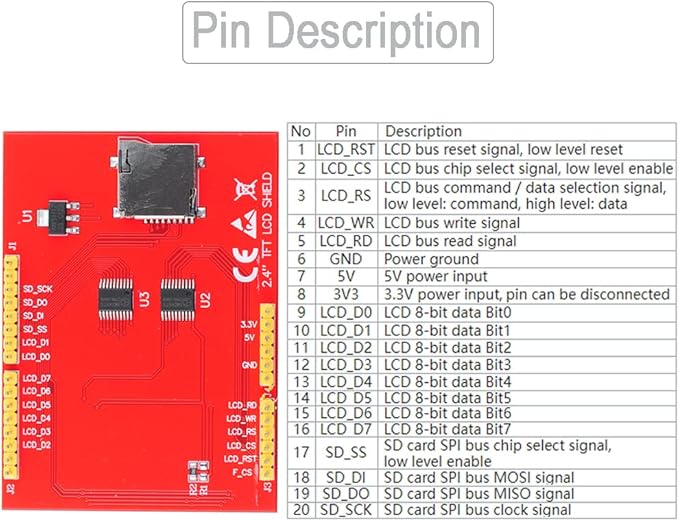

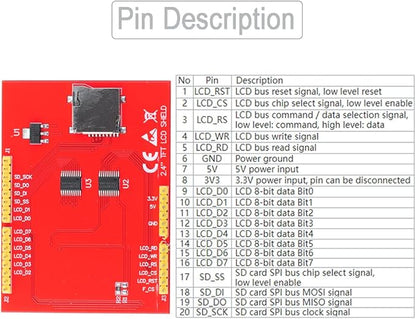

  • Wiring with STC12 board: 5V-5V, 3V3-3V3, GND-GND, LCD_D0-P20, LCD_D1-P21, LCD_D2-P22, LCD_D3-P23, LCD_D4-P24, LCD_D5-P25, LCD_D6-P26, LCD_D7-P27, LCD_RST-P33, LCD_CS-P13, LCD_RS-P12, LCD_WR-P11, LCD_RD-P10, no need to connect SD_SS, SD_DI, SD_DO, SD_SCK.

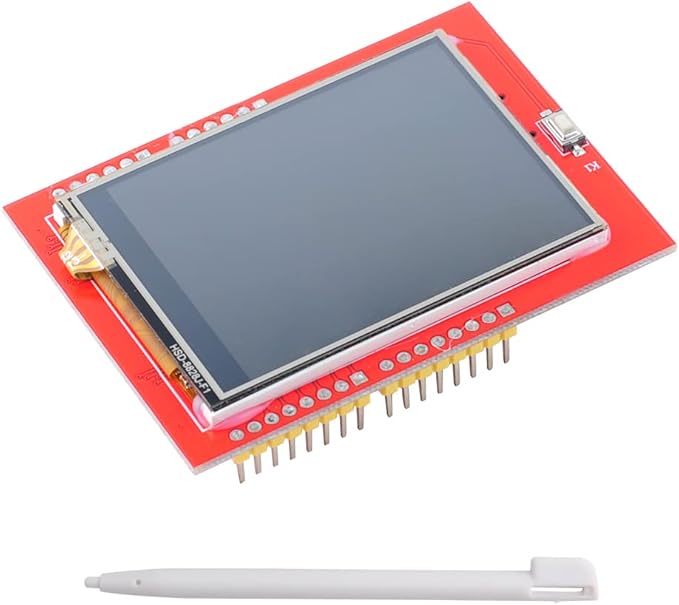

  • You will receive 1pcs 2.4 inch tft lcd display with touch pen, other accessories excluded.
  • You can find more lcd display via "Visit the DIYmalls Store"

Overview

  • Brand : DIYmalls
  • Connectivity Technology : Parallel Interface, SD Card
  • Included Components : 1pcs 2.4 inch touchscreen
  • Operating System : Linux
  • CPU Manufacturer : Atmel
