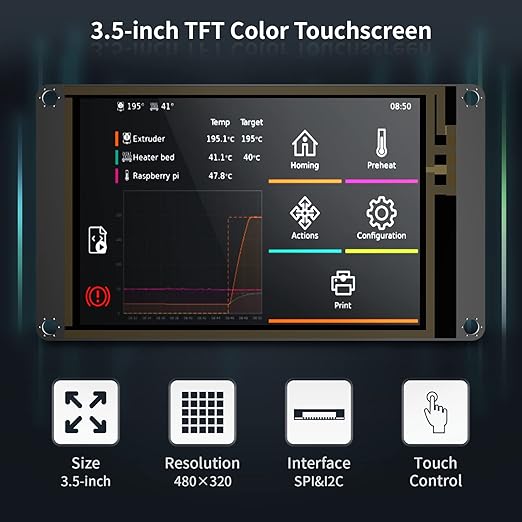

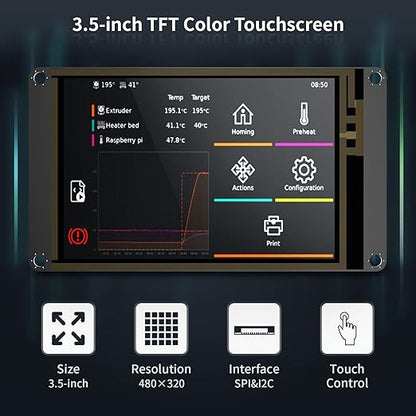

LCD display adopts SPI, touch adopts I2C communication mode, and shares the main control chip with the motherboard, which greatly reduces the cost of touch screen
Each motor drive shall select power supply, motor power supply or main power supply (heating rod power supply) separately

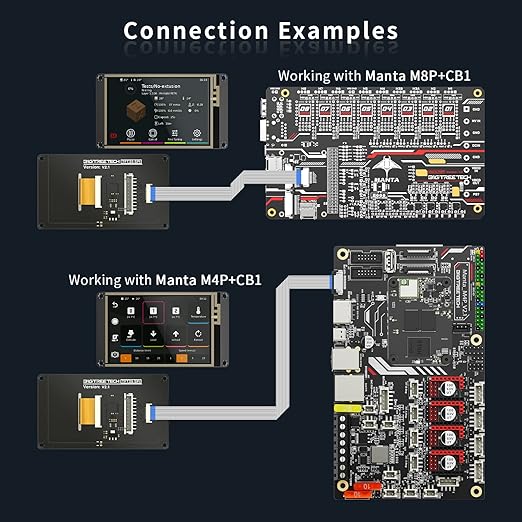

It is connected with the main board through FPC cable, which is simple and convenient to operate
Designed with XH2.54 terminal, which can communicate with the board through the terminal

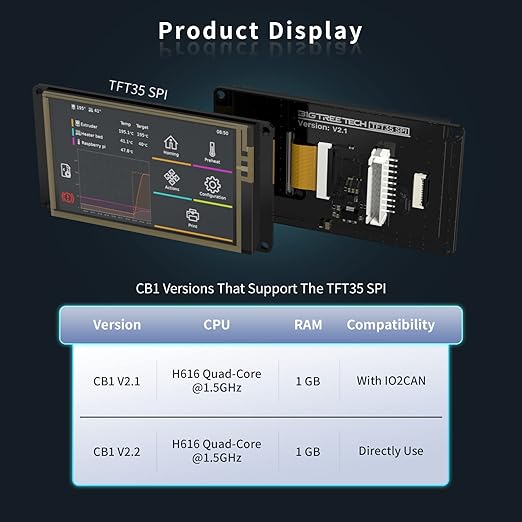

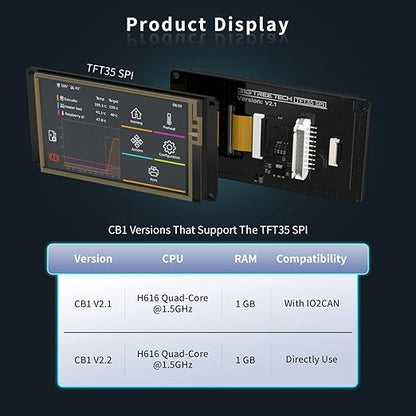

Currently, it only supports BIGTREETECH CB1. If you use CB1 V2.2, you only need to use with TFT35 SPI V2.1; If you use CB1 V2.1, you need to use with TFT35 SPI V2.1+IO2CAN V1.0. If you have any questions, you can write us at any time, and we will answer your questions
Overview
Brand : BIGTREETECH

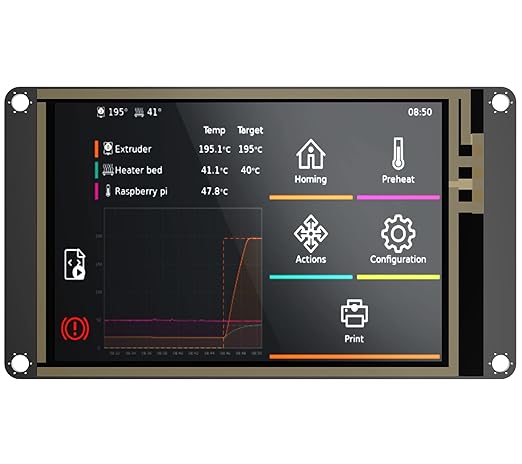

Screen Size : 3.5 Inches

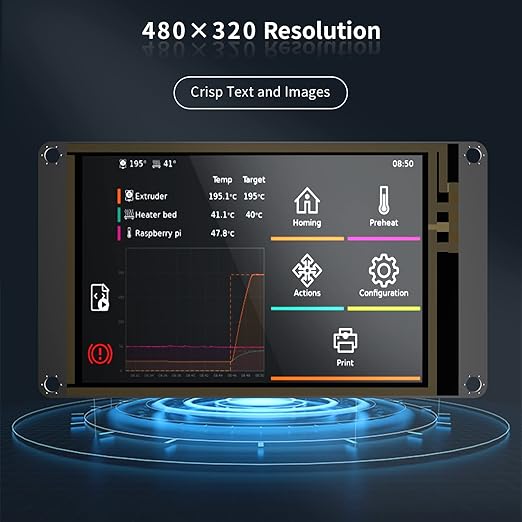

Resolution : 480x320
Display Resolution Maximum : 480x320
Special Feature : Touchscreen, Klipper Firmware Support
