Hosyond 5 Pcs 1.3 Inch IIC I2C OLED Display Module 128x64 Pixel SH1106 Screen Module Compatible with Arduino/Raspberry Pi (Blue)

Hosyond 5 Pcs 1.3 Inch IIC I2C OLED Display Module 128x64 Pixel SH1106 Screen Module Compatible with Arduino/Raspberry Pi (Blue)

$28.78 USD
$28.78 USD
Sale Sold out
Shipping calculated at checkout.

About This

  • 1.3-inch OLED screen, self-luminous material, no backlight, ultra-low power consumption, normal display is only 0.06W. Blue display.
  • 128x64 resolution, the display effect is clear and the contrast is high. The viewing angle is greater than 160°. Even small fonts are easy to read.
  • Wide voltage power supply (3V~5V), compatible with 3.3V and 5V logic levels, no need for level conversion chips.
  • Embedded driver IC: SH1106. Using the IIC/I2C bus, only 2 IOs are needed to light up the display.

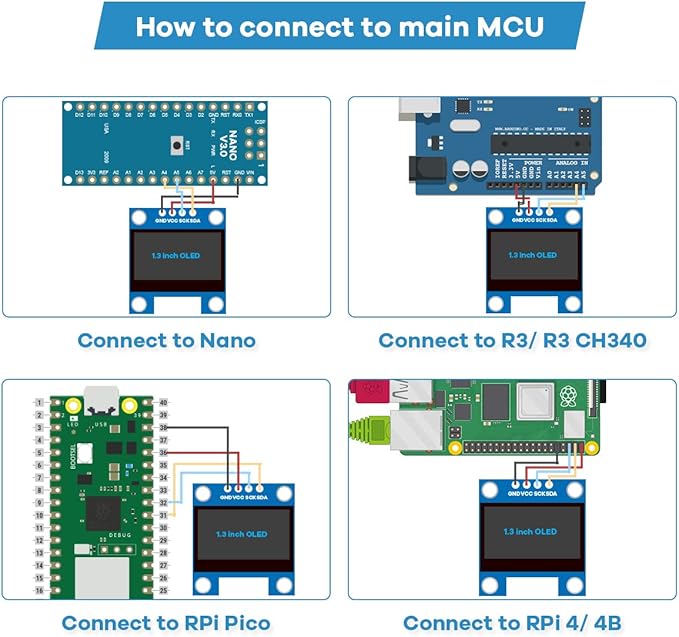

  • Compatible with R3 board and Mega, Raspberry pi, 51 MCU, STIM 32 etc. Provide underlying driver technical support.

Overview

  • Brand : Hosyond
  • Connectivity Technology : I2C

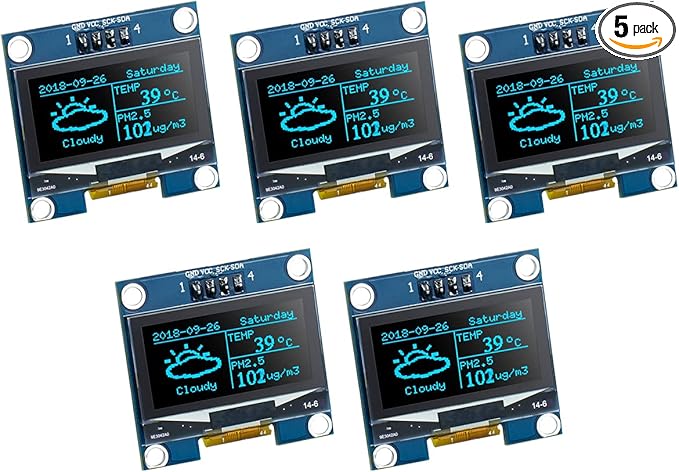

  • Included Components : 5 x 1.3 inch oled module
  • Operating System : Ios
  • Wireless Communication Standard : Bluetooth
