Power driver meets DALI standard, built-in LED power on/off control relay, PWM high or low potential can be selected by jumper, IP20.
DALI-PWM power adapter conversion rate of 93%, power loss < 0.5W, linear or logarithmic dimming curve optional, dimming range : 1 ~ 100%.
The power converter works in the range of -30℃~+60℃, with short circuit, overload, over-voltage and over-temperature protection to protect your equipment.
Switching power supply using plastic shell, natural air-cooled, applications in LED-related devices, lighting equipment, etc.
To prolong the service life, please do not let the power transformer exceed the rated current for a long time! If you have any questions, please contact us in time.
Overview

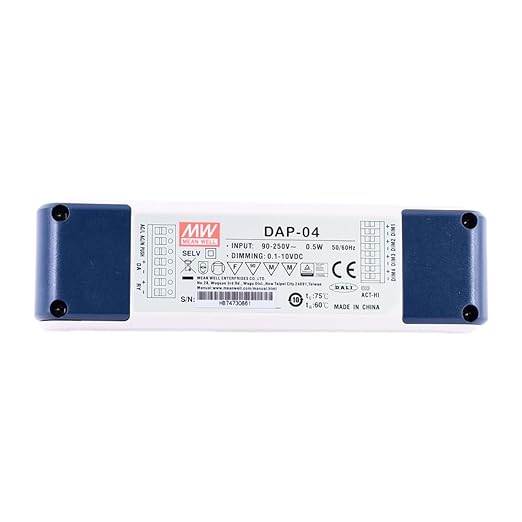

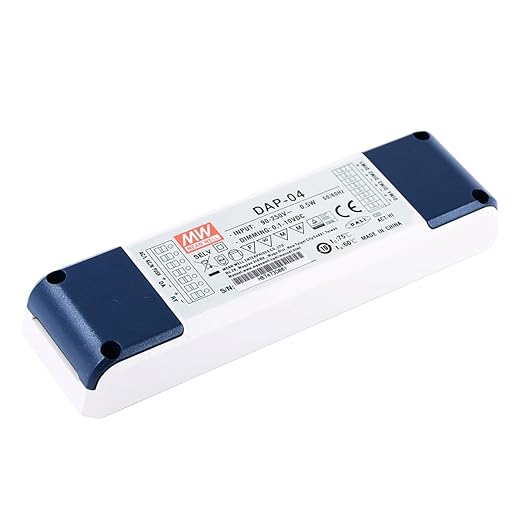

Model Name : DAP-04
Brand : MEALDOO
Item dimensions L x W x H : 6.69 x 1.97 x 1.18 inches
