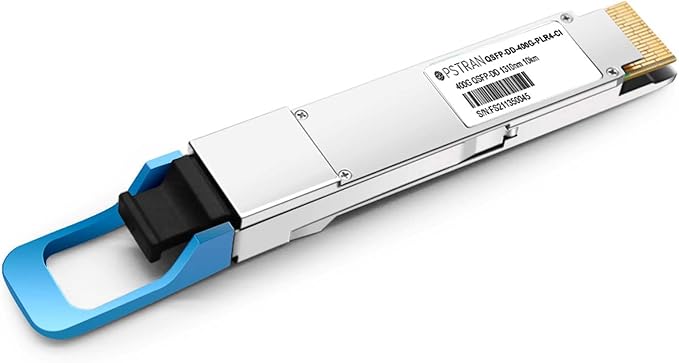

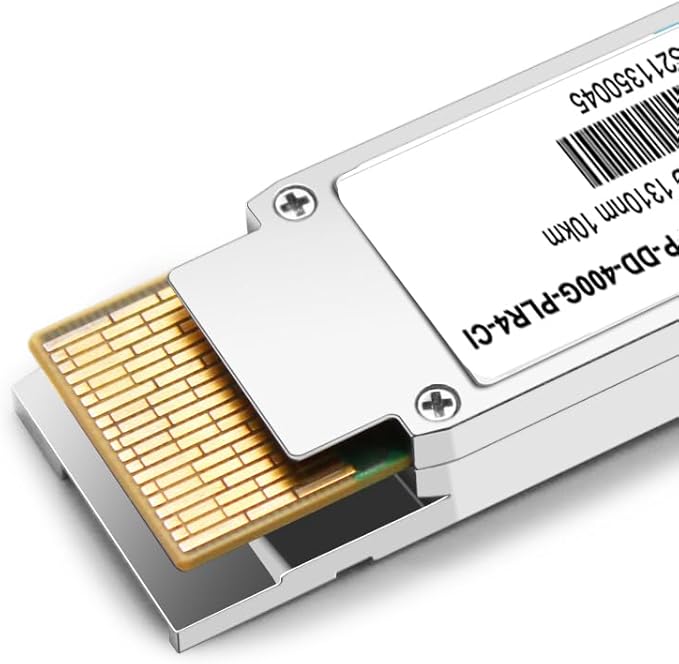

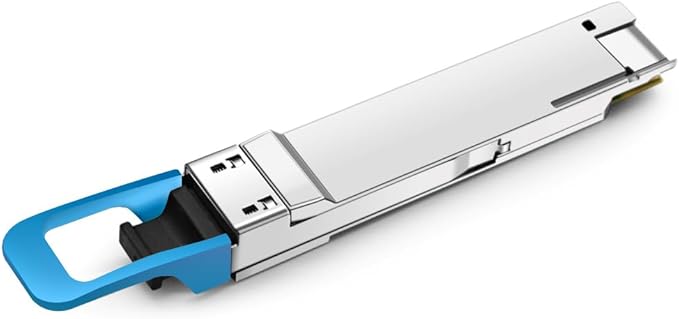

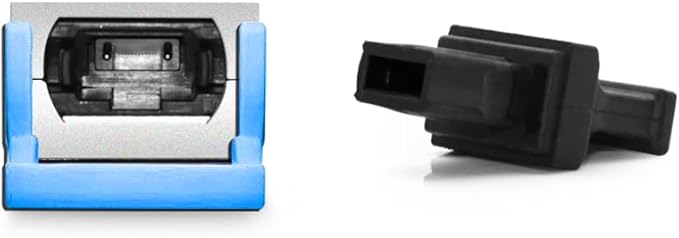

the 400GBASE-PLR4 QSFP-DD Optical Transceiver Module uses MTP/MPO-12 connector to transmit up to 10km over parallel single-mode fiber. Built-in high performance DSP Chip, Max. Power Consumption 12W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability. We owns compatibility LAB facilities to meet the EEPROM coding and writing requirements with various brands of the latest and advanced networking equipments to ensure the compatibility.
Support 4x100G Breakout to QSFP28-100G-LR, 8x50G PAM4 Retimed 400GAUI-8 Electrical Interface.Hot Pluggable QSFP-DD Form Factor, QSFP-DD Port is Backward Compatible with QSFP+, QSFP28 and QSFP56 Modules
Built-in Real Time Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
High-speed Electrical Compliant to IEEE 802.3bs, Compliant with QSFP-DD CMIS, QSFP-DD MSA and 100G Lambda MSA 100G-LR Specification
