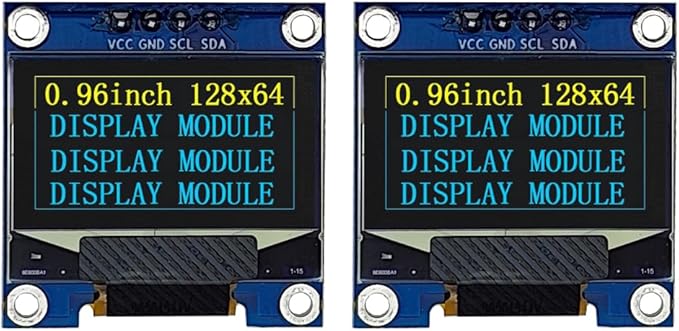

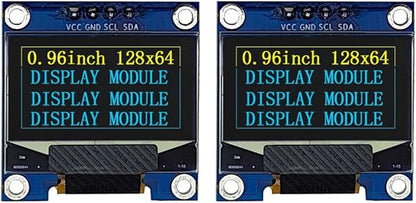

Haldzemo 0.96" OLED Display Module I2C IIC Serial 128X64 SSD1306 LCD Screen VCC GND SCL SDA (2 Pack, Yellow Blue)

Haldzemo 0.96" OLED Display Module I2C IIC Serial 128X64 SSD1306 LCD Screen VCC GND SCL SDA (2 Pack, Yellow Blue)

$15.98 USD
$15.98 USD
Sale Sold out
Shipping calculated at checkout.

About This

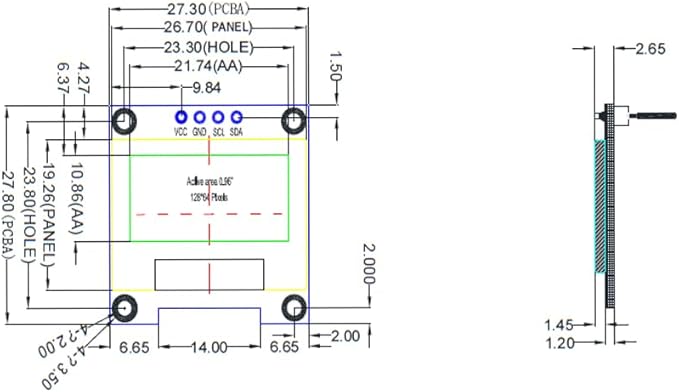

  • 0.96 inch OLED screen module 128*64 resolution, panel size: 28*27mm, Interface type: IIC interface
  • OLED self-luminous, no backlight. The main chip is SSD1306, supports DC 3.3V to 5.0V
  • This OLED screen module is small and suitable for applications that require a compact display solution

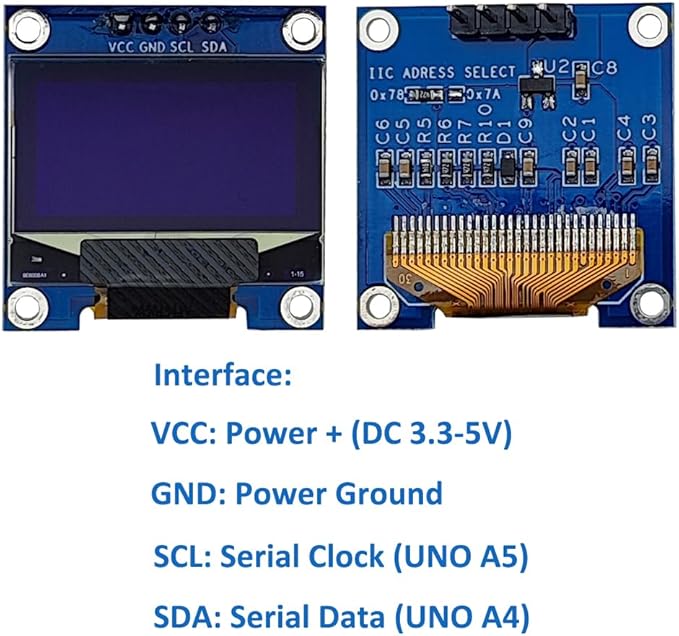

  • Interface: VCC: DC 3.3-5V, GND: Ground, SCL: Serial Clock, SDA: Serial Data
  • Compatible Arduino Raspberry Pi ESP8266 ESP32

Overview

  • Brand : Haldzemo
  • Connectivity Technology : I2C, VCC
  • Included Components : 2pcs 0.96 Inch OLED Module VCC
  • Operating System : Linux
  • CPU Manufacturer : ARM
