About This

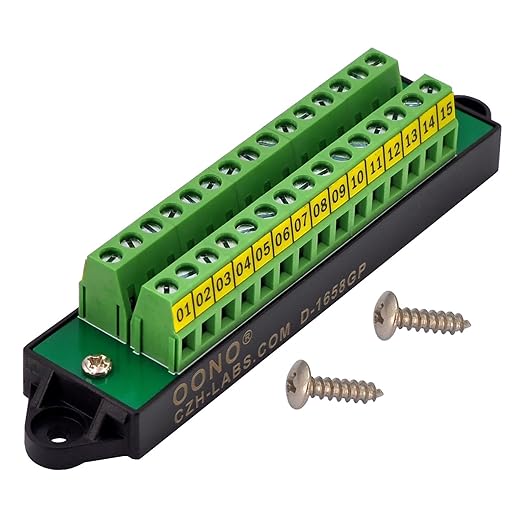

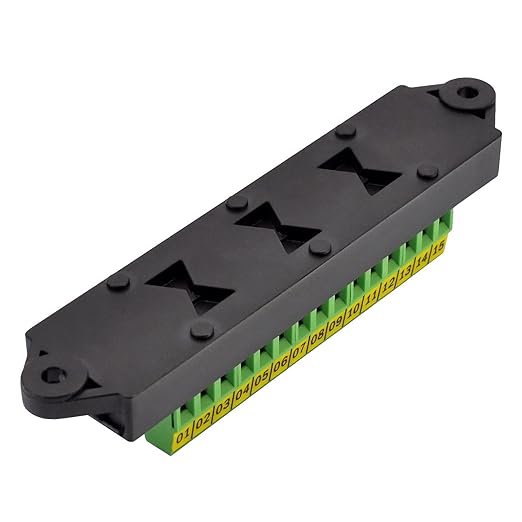

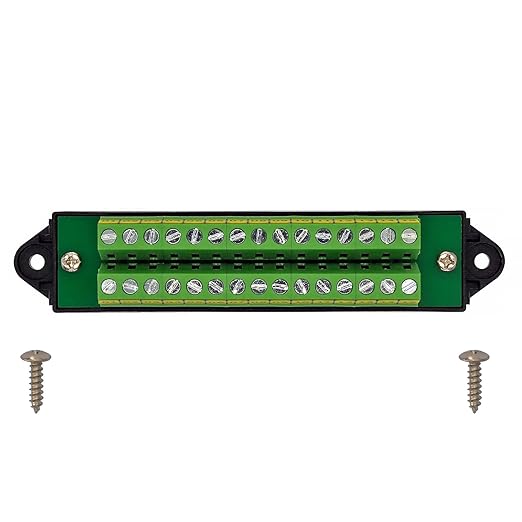

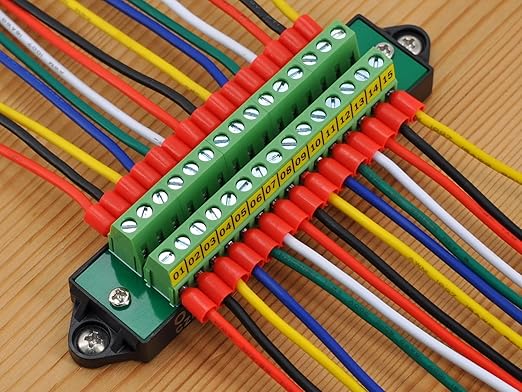

• 16 Amp 300V 15x2 position screw terminal block distribution module.
• Rated current 16 Amp(per pole), Maximum voltage 300V.
• Screw terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
• UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.

Overview

• Current Rating : 16 Amps
• Item Pitch : 5 Millimeters
• Gauge : 0.01
• Connector Type : Screw
• Number Of Contacts : 30
• Mounting Type : DIN Rail Mount
• Material : Polycarbonate (PC)
• Brand : OONO
• Voltage : 300 Volts
• Number Of Poles : 15
